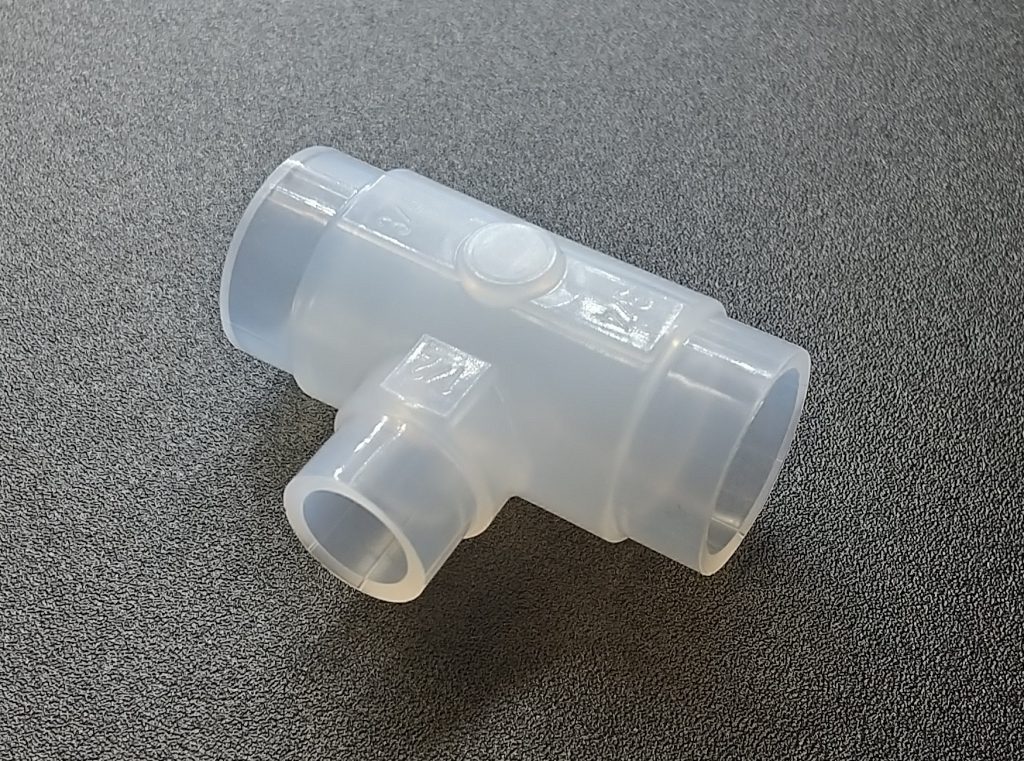

SB Fitting Tee
Fluid System
Fittings
Short-type weld fittings.
Small, lightweight joint made of high-purity plastics, and is maintenance-free after installation.- ・Material：
- PFA
Features
- The welding fittings that enable compact piping design.
- No taper in the pipe line and low pressure loss structure.
- The fittings are not only sold separately, but also available for piping installation.
- Please "Contact" us for details.
Piping design with short face-to-face distances is possible.
| Tube Size | A (mm) Normal |
A (mm) Minimum |
| 1/4″ | 26.5 | 15.5 |
| 3/8″ | 29.5 | 18.5 |
| 1/2″ | 34.5 | 23.5 |
| 3/4″ | 44.5 | 33.5 |
| 1″ | 49.5 | 38.5 |

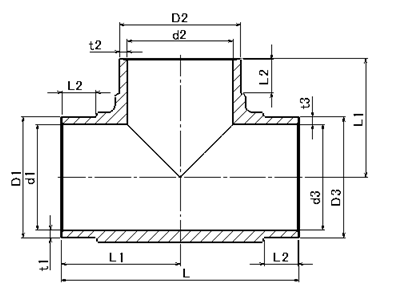

Dimensions
Product List (mm)
| Part No. | Tube Size | D1/D3 | D2 | d1/d3 | d2 | t1/t3 | t2 | L | L1 | L2 |
| SBT-4 | 1/4″ | 6.35 | 6.35 | 4.35 | 4.35 | 1 | 1 | 27 | 13.5 | 7.5 |
| SBT-6 | 3/8″ | 9.52 | 9.52 | 6.35 | 6.35 | 1.59 | 1.59 | 30 | 15 | 7.5 |
| SBT-8 | 1/2″ | 12.7 | 12.7 | 9.52 | 9.52 | 1.59 | 1.59 | 35 | 17.5 | 7.5 |
| SBT-12 | 3/4″ | 19.05 | 19.05 | 15.88 | 15.88 | 1.59 | 1.59 | 45 | 22.5 | 7.5 |
| SBT-16 | 1″ | 25.4 | 25.4 | 22.22 | 22.22 | 1.59 | 1.59 | 50 | 25 | 7.5 |
| SBT-6-4-6 | 3/8″x1/4″x3/8″ | 9.52 | 6.35 | 6.35 | 4.35 | 1.59 | 1 | 30 | 15 | 7.5 |
| SBT-8-4-8 | 1/2″x1/4″x1/2″ | 12.7 | 6.35 | 9.52 | 4.35 | 1.59 | 1 | 35 | 17.5 | 7.5 |
| SBT-8-6-8 | 1/2″x3/8″x1/2″ | 12.7 | 9.52 | 9.52 | 6.35 | 1.59 | 1.59 | 35 | 17.5 | 7.5 |
| SBT-12-4-12 | 3/4″x1/4″x3/4″ | 19.05 | 6.35 | 15.88 | 4.35 | 1.59 | 1 | 45 | 22.5 | 7.5 |
| SBT-12-6-12 | 3/4″x3/8″x3/4″ | 19.05 | 9.52 | 15.88 | 6.35 | 1.59 | 1.59 | 45 | 22.5 | 7.5 |
| SBT-12-8-12 | 3/4″x1/2″x3/4″ | 19.05 | 12.7 | 15.88 | 9.52 | 1.59 | 1.59 | 45 | 22.5 | 7.5 |
| SBT-16-4-16 | 1″x1/4″x1″ | 25.4 | 6.35 | 22.22 | 4.35 | 1.59 | 1 | 50 | 25 | 7.5 |
| SBT-16-6-16 | 1″x3/8″x1″ | 25.4 | 9.52 | 22.22 | 6.35 | 1.59 | 1.59 | 50 | 25 | 7.5 |
| SBT-16-8-16 | 1″x1/2″x1″ | 25.4 | 12.7 | 22.22 | 9.52 | 1.59 | 1.59 | 50 | 25 | 7.5 |
| SBT-16-12-16 | 1″x3/4″x1″ | 25.4 | 19.05 | 22.22 | 15.88 | 1.59 | 1.59 | 50 | 25 | 7.5 |
