Product Information

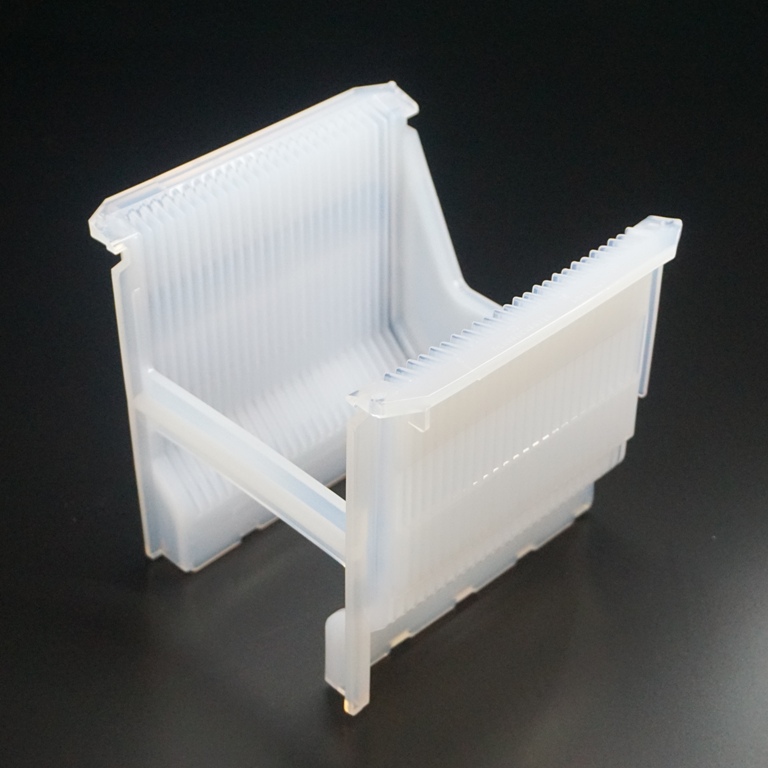

125mm PFA Cassettes
Wafer Handling
PFA cassettes with a large opening area for improved washing and drying performance.
Wafer washing cassette made of fluoroplastic PFA, which has a proven track record of stable quality.- ・Wafer size：
- 125mm
- ・Material：
- PFA
Features
- WD series is a mounted drying cassette with maximum opening and is not compatible with handles or spin dryers.
Product List (mm)
| Part No. | Wafer Capacity |
A1 Length |
A2 Width |
A3 Height |
B2 Slot Pitch |
C3 Pocket Flat |
D6 Foot Width |
D1 D1 Pitch |
| KM-50NA | 25 | 142.2 | 153.0 | 145.5 | 4.76 | 1.6 | 76.2 | 13.97 |
| KM-50NAT | 25 | 142.2 | 153.0 | 145.5 | 4.76 | 1.6 | 76.2 | 13.97 |
| KM-50NM | 25 | 142.2 | 153.0 | 146.0 | 4.76 | 1.6 | 108.0 | 13.97 |
| KM-50WD | 25 | 143.4 | 153.0 | 146.0 | 4.76 | 50.0 | 14.54 |
