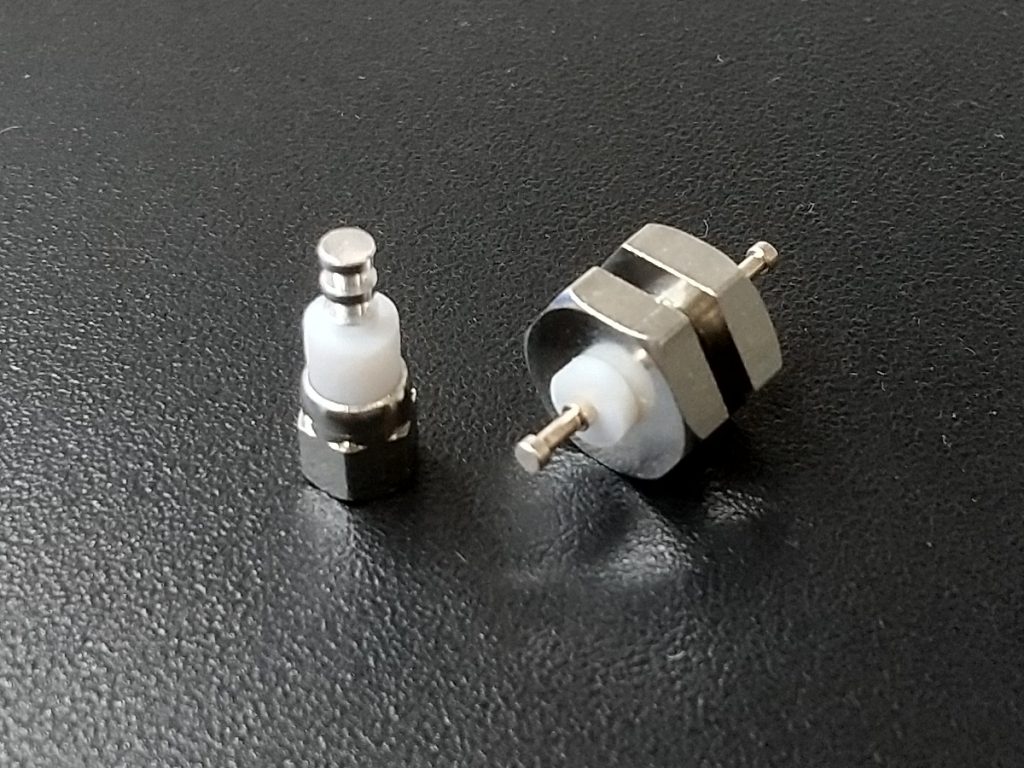

Fluoro-terminals P type
Relay terminals that take advantage of the outstanding electrical characteristics of fluoroplastics.
High frequency losses and dielectric constants are constant and low over a wide range of frequencies and are stable over temperature variations.- ・Material:
- PTFE
Features
- Excellent high frequency characteristics.
High surface resistance and excellent water repellency.
- Excellent weather resistance and does not change with time.
- Operating temperature range (-90 to 260°C)
- There is no water absorption.
- Excellent impact resistance and high mechanical strength
- Chemically stable and will not be affected by oils and solvents.
How to install
(1) Mounting can be easily secured by pressing it vertically into the mounting plate.
(2) The minimum thickness of the mounting plate is 0.5 mm.
(3) The mounting holes should be about 0.1 to 0.2 mm below the terminal strike dimensions.

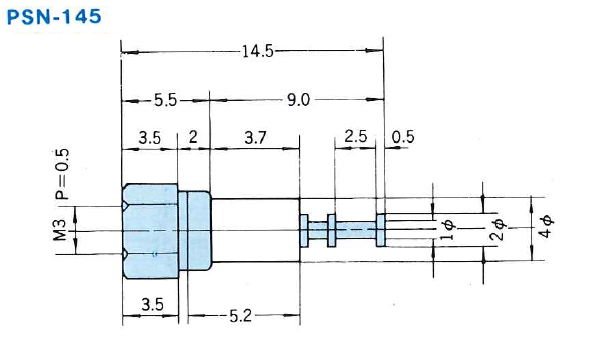

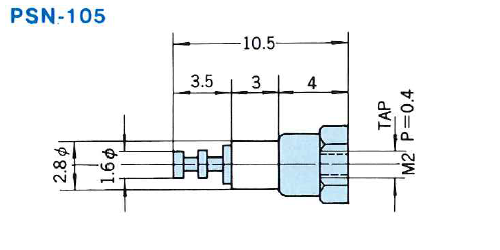

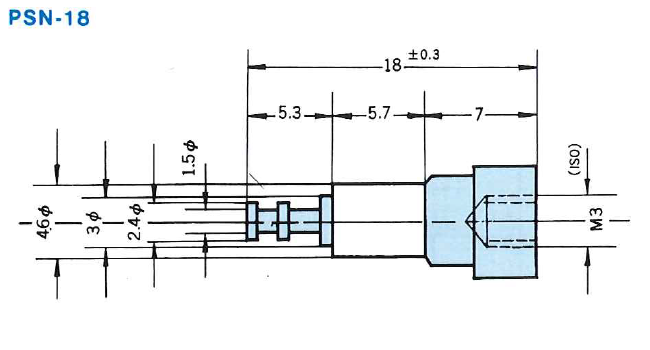

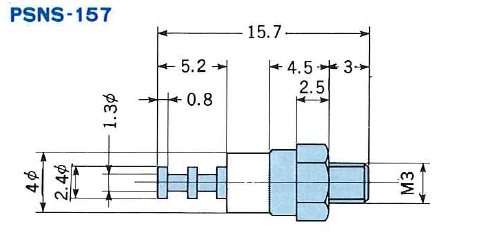

Product List (Click Part No. to see dimensions)
Part No. | Material: Insulator |
Material: Nut Material: Plating |
Capacity (pF) |
Nominal Rating RMS 50Hz |
Flashover Volume RMS 50Hz |

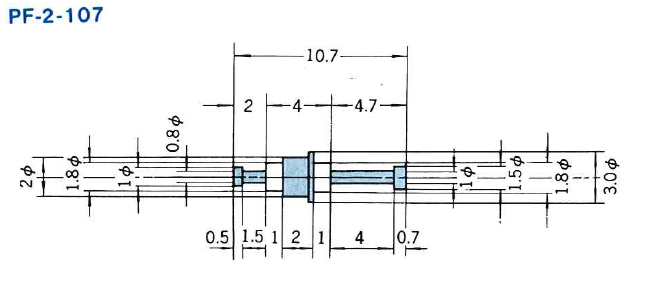

PF-2-107 | PTFE | Brass Silver-plating |
0.5 | 1000 | 2000 |

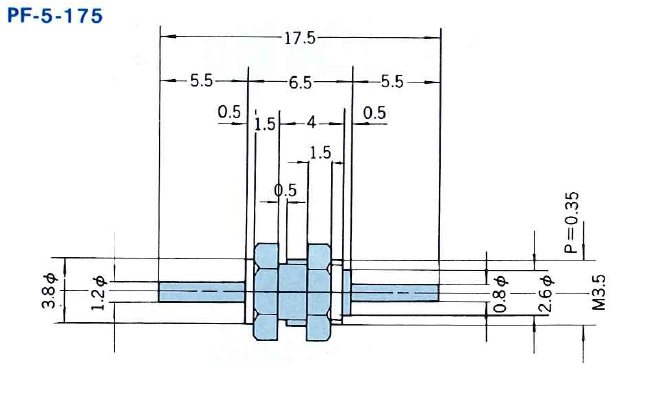

PF-5-175 | PTFE | Brass Silver-plating |
1.6 | 1200 | 2300 |

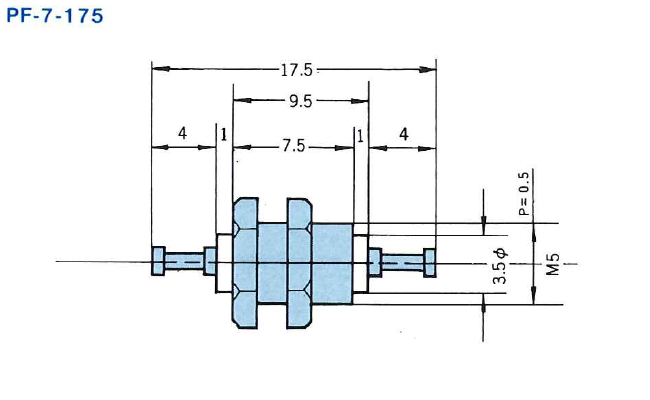

PF-7-175 | PTFE | Brass Silver-plating |
1.7 | 1200 | 2300 |
PSN-105 | PTFE | Brass Silver-plating |
0.4 | 1500 | 3500 |

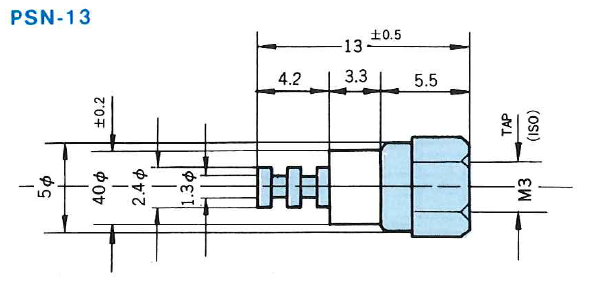

PSN-13 | PTFE | Brass Silver-plating |
0.4 | 2000 | 4500 |
PSN-145 | PTFE | Brass Silver-plating |
0.3 | 2000 | 4500 |
PSN-18 | PTFE | Brass Silver-plating |
0.3 | 2500 | 5500 |
PSNS-157 | PTFE | Brass Silver-plating |
0.2 | 2500 | 5500 |

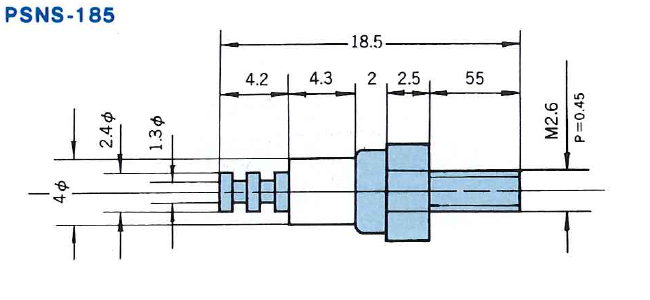

PSNS-185 | PTFE | Brass Silver-plating |
0.4 | 2000 | 4500 |

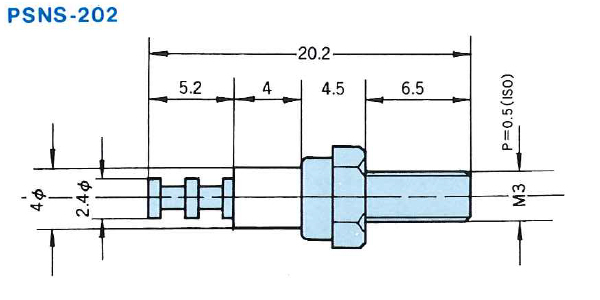

PSNS-202 | PTFE | Brass Silver-plating |
0.4 | 2200 | 5000 |

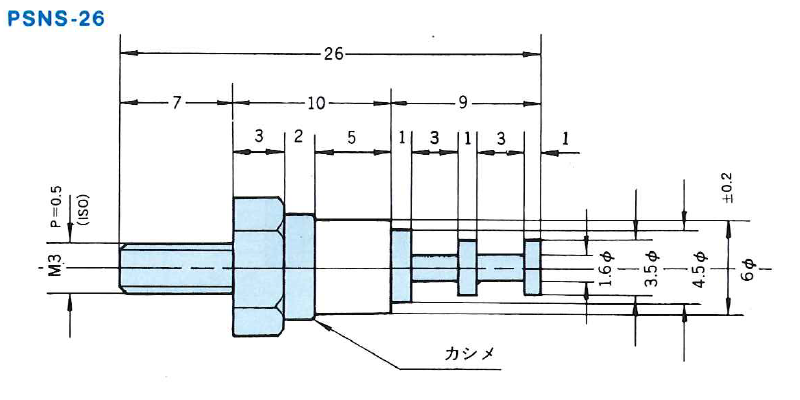

PSNS-26 | PTFE | Brass Silver-plating |
0.4 | 2500 | 5700 |
